Cabin Filter And Cigarette Tip
ELITE CF Series
Coconut Granular Activated Carbon
Elite CF Series is an high-performance granular coconut shell activated carbon. It is manufactured by steam activation
by selected high-density coconut shell charcoal. An important feature of this series of products is its superior mechanical
hardness, high density, and extensive de-dusting during its manufacture that ensures an exceptionally clean activated carbon product.
Elite CF Series is specially designed for cabin Air Filtration and cigarette Filter applications. Due to controlled activation
process that yields a very high activity carbon with higher than average apparent density, that fulfils stringent service life requirements.
Specifications
| PARAMETERS | TESTING METHOD | GRANULAR ACTIVATED CARBON | ||||
|---|---|---|---|---|---|---|
| PRODUCT GRADE | 20X50, 30X60, 40X80 | |||||
| CTC (CCl4) adsorption | ASTM D 3467 | 55 Min | 60 Min | 65 Min | ||
| Apparent Density (g/l) | ASTM D 2854 | 0.480-0.530 | 0.470-0.520 | 0.460-0.500 | ||
| Iodine Number (mg/gm) | ASTM D 4607 | 1050 Mg/g | 1100 Mg/g | 1200 Mg/g | ||
| Surface Area (m2/gm) | BET | 1100 Min | 1150 Min | 1250 Min | ||
| Ash Content (%) | ASTM D 2866 | 4% Max | 4% Max | 4% Max | ||
| Magne c Par cles | - | 0.2% Max | 0.2% Max | 0.2% Max | ||
| Moisture Content (%) | ASTM D 2867 | 3% Max | 3% Max | 3% Max | ||
| Ball-Pan Hardness Number | ASTM D 3802 | 98.0 Min | 98.0 Min | 99 Min | ||
| pH | ASTM D 3838 | 9 to 11 | 9 to 11 | 9 to 11 | ||
Applications

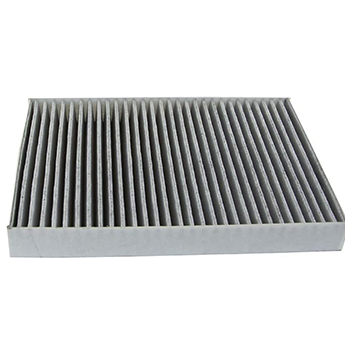

- Cabin Air Filtration

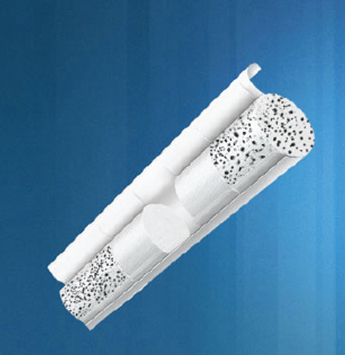

- Cigarette Filter tips
Features / Benefits
- Coconut Carbon
- High Hardness related to other
raw materials - High Density
- De-dusted Product
- High Microporous structure
- Low Ash
- High adsorption capacity
- Pore structure provides a wide range
of contaminants removal capabilities.
Available Particle Sizes
- 20×50 Mesh (0.85 – 0.30 mm)
- 30×60 Mesh (0.60 – 0.21 mm)
- 40×80 Mesh (0.42 – 0.18 mm)
- Other granulations available
upon request.
Product Quality
- Product is 100% dust free.
- Free of magnetic particles and foreign matter.
- We can adopt any deviations from this quality as per customer requirements.
- Moisture content can be adjusted as per customer requirement.
Standard Packing
- 25 Kg bag (PP Woven Bag)
- 500/550 Kg FIBC Bag
